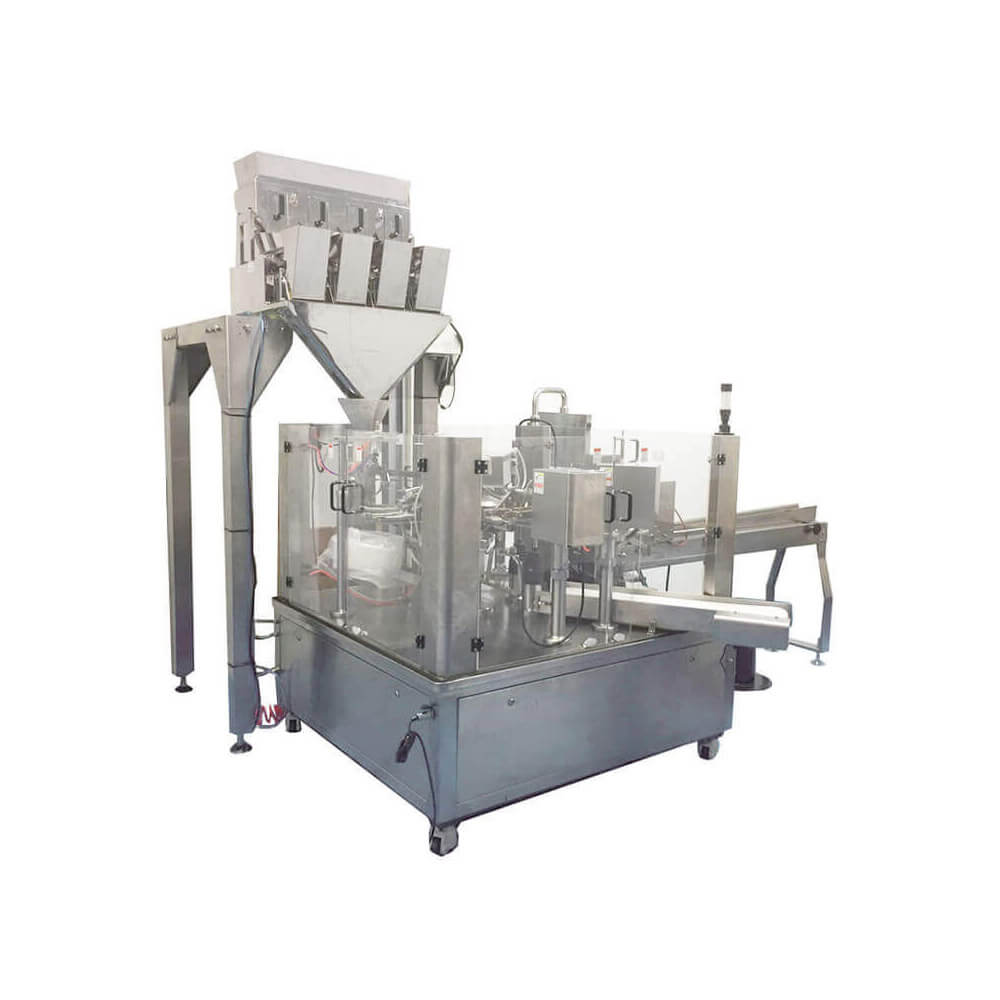

Premade Pouch Rotary Fill and Seal Seal With Linear Scales for Granules

Equipped with Z-shape bucket elevator and combination scale, it is widely applied to candies, microwave popcorn, cookies, nuts, rice, coffee beans, crops, peanuts, etc.

Category: Tag:

Description

8 work stations: 1) bag picking; 2) coding; 3) zip unit; 4) bag opening; 5) according to the material; 6) according to the material; 7) sealing and closing zip; 8) tidy to output; Principal Features:
  • Automatic Pre-made Pouch Rotary Packing Machine designed by Korea
  • Equipped with a 10” PLC touch screen with a graphic interface and an automatic lubricating system.
  • Washing down the frame, parts above the table made by 304# stainless steel and alumina material.
  • The whole machine weighs 1.8 tons, and its grippers can work at the 5 KGS bag loading.
  • Options for 6, 8, 10 workstations; also with vacuum rotary packaging machine with the rotary vacuum chamber.
  • Verify weight in weighing station, and compensate by servo filling system.
  • Vacuum pouch in sealing position
  • Spout at the center of the pouch

  • Graphic Interface

    Graphic Interface, Well Arrange, 20 recieption, User Friendly

  • Saving pouches

    Saving pouches & less pollution the machine, no pouch or incorrect pouch opening, no fill & no seal

  • Easy Change Size

    All honor pack rotary packing machine use motor width adjust, change pouch size in a minute.

  • Safe Door Guard

    In case of door opened, machine stop to protect user

  • Low Noise Vacuum

    Low noise vacuum system with pollution free

  • Extremely Water Proof

    Washing down by water gun, we follow extremely water proof standard from Korea.

  • *Vacuum For Pouch

    Vaccum in sealing position, work for deflate the pouch, suit for products without high vaccum degree request

  • *Center Spout Pouch

    Rarely supplier offer this option, we innovate filling the pouch then install center spout in rotary packing machine

  • *Zip Pouch

    With avantage of servo technology, JR series acheive 99% zip pouch open rate

  • *Cup Feeder

    In case of products can’t fiilling by external system, we offer cup feeder to help worker filling to JR series more efficient

  • *Horizontal Pouch Feeder

    Some pouch can’t load by bag stacker, like spout pouch, a horizontal pouch feeder will optioned.

  • *Nitrogen Flushing

    If your package need filling Nitogen, Option in first sealing station will installed this Nitrogen Flushing Device.
