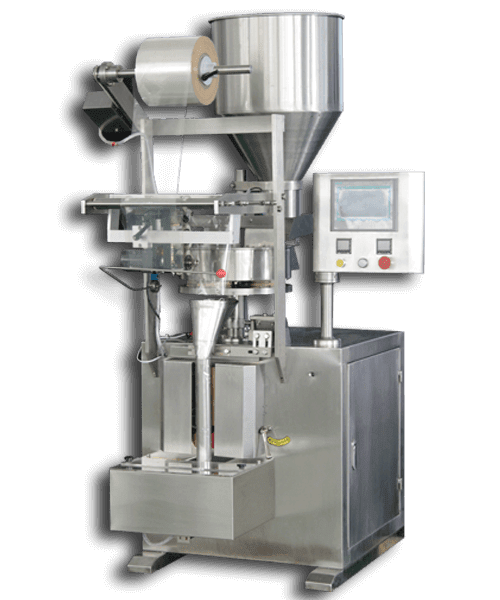

Sachet Filler & Packaging Machine VFH Series

Sachet Filler & Packaging Machine VFH Series

Compact Automatic Sachet/Pouch Packaging Machine with Filling Unit Integrated, PLUG & RUN.
Model Available For Powder, Liquid and Granule;Multiple Dosing/Filling Model per Request.
Motor Driving Only, No Compress Air Request

Principal Features :

  • PLC & 7 inch touch screen control,program is more flexible,specially customized for you.
  • More safety guard and prevent wrong operation from injured .
  • More intelligent , do not waste the film and with counting function .
  • All machine body are made of stainless steel SS 304 .
  • Various types of heating sealable laminated films can be run on the machine
GET AN QUOTE

Sachet Packaging Solutions

Customer Success Project, Customized Packing Solutions

Tea

Soy Sauce

Honey

Vitamin

Mix Beans

Powder Muddy Mouth

Medicinal Powder

Instant Coffee

Spices Powder

Nuts

GET AN QUOTE
LEARN MORE

Hot Sale VFH Series Sachet Packaging Machine

Efficient, Versatile, and Cost-Effective: Revolutionize Your Packaging Process with the VFH Series Sachet Packaging Machine

Tea Packaging

Read More

VFH-320

Read More

VFH-3S-320

Read More

VFH-4S-320

Read More
MODEL VFH-320 VFH-3S-320 VFH-4S-320
Bag Styles Pillow Bag 3 side seal bag 4 Side Seal Bag
Bag Length 30 to 180 mm 30 to 150 mm 30 to 150 mm
Bag Width 30 to 135 mm 25 to 135 mm 40 to 135 mm
Film & Reel 0.04-0.12 mm (30-120 mic.) Real Max.Dia.400 mm(15.75 ”) Real Core Dia.75 mm (2.95 ”)
Max. Reel Width 300mm(11.81”) 270mm(10.63”) 270mm(10.63”)
Packing Speed 40-80 bags/min 40-80 bags/min 35-80 bags/min
Power & Voltage 1.35 KW, AC220V/50Hz 1.2 KW, AC220V/50Hz 1.8 KW, AC220V/50Hz
Dimensions 650*850*1650mm
MACHINEWEIGHT 250 KGS

Sachet Packaging Dosing Systems

With Multihead Scales for Granules

With Pistion Filler for Liquid & Paste

With Auger Filler for Powder

With Linear Scales for Granules

With Buckets Conveyor for Granules

How VFH series works

Typical Pouch Sytles Can Bring In This Model

3 Side Seal

4 Side Seal

Stick

Pillow
William Roberts Designation

Hey there, I just wanted to share my experience with HonorPack. As a purchasing manager for a snack food production factory, I've been working with them for over 5 years now, and I have to say that their bag packaging machinery is top-notch. Their solutions are tailored to our specific needs, and the machinery is not only durable but also easy to use. Plus, their customer service is outstanding.

Luis Morales Designation

As a CEO of a packaging machine distribution company, I've worked with HonorPack for many years, and I have to say that they're one of the most dependable suppliers out there. Their machinery is not only durable but also easy to install and maintain, and their customer service is second to none.

Vinh Le Designation

I've been in the snack food production industry for over 20 years now, and I've worked with many different packaging suppliers. But none of them compare to HonorPack. Their machinery is not only reliable but also easy to use, and their customer service is outstanding. I would highly recommend them to any business looking for a trusted partner in the industry.

    All You Need To Know About Compact VFFS Machines

    In the realm of packaging, Vertical Form Fill Seal (VFFS) machines have become integral components due to their proficiency in automating and streamlining packaging processes. Among these, the compact versions are gaining substantial attention for their ability to work in smaller production environments or operations with limited space. This article aims to offer a comprehensive understanding of compact VFFS machines, shedding light on their functionality, benefits, applications in various industries, and critical purchasing considerations.

    What is a Vertical Form Fill Seal (VFFS) machine?

    The very essence of a VFFS machine lies in its name: it forms, fills, and seals packages vertically. The automated packaging process starts by feeding a continuous flat roll of plastic film through the machine. The film is formed into a bag shape with the help of a forming collar, following which the product is filled and the bag is sealed. This three-step process—form, fill, and seal—occurs in a vertical manner, hence the name.

    Compact VFFS Machines Overview

    Even though compact VFFS machines are smaller than their standard counterparts, they encapsulate similar functionality. These machines are a fusion of space optimization and operational efficiency, making them suitable for small production lines without compromising on packaging speed or efficiency.

    Compact VFFS Machine VS Big Size VFFS Machine

    Compact VFFS machines and big size VFFS machines each have their unique advantages and disadvantages, and understanding these can help you make the best decision for your business.

    Compact VFFS Machine
    Pros:

    1. Space-Saving: Compact VFFS machines, as their name suggests, are smaller and take up less space. This can be ideal for smaller facilities or for businesses looking to maximize their use of space.
    2. Ease of Operation: Typically, compact machines are simpler and easier to operate, which can reduce the need for extensive staff training.
    3. Cost-Effective: Compact machines generally have a lower initial cost than larger machines, making them a more affordable option for smaller businesses or startups.

    Cons:

    1. Limited Capacity: Due to their smaller size, compact machines often have a lower production capacity compared to larger machines.
    2. Limited Functionality: Compact VFFS machines might not offer the same range of functions or capabilities as larger machines, potentially limiting the types of packaging you can produce.

    Compact VFFS Machine VFH6 Series

    Big Size VFFS Machine VFJ Series

    Big Size VFFS Machine

    Pros:

    1. Higher Capacity: Big size VFFS machines typically have a higher production capacity and can handle larger product sizes, which could be necessary for certain types of goods.
    2. More Functionality: These machines may offer a broader range of functions, such as different sealing types, additional automation features, and more customization options for your packaging.
    3. Durability and Longevity: Larger machines are generally more robust and durable, often providing a longer operational lifespan, which could save costs in the long run.

    Cons:

    1. Higher Initial Investment: Big size VFFS machines often come with a higher price tag, which may not be suitable for every business, especially smaller ones or those just starting out.
    2. Space Requirement: These machines require more space, which could be a drawback for facilities with space constraints.
    3. Complex Operation: Larger machines can be more complex to operate and may require more specialized training for your staff.
    FactorCompact VFFS MachineBig Size VFFS Machine
    Facility SpaceIdeal for smaller facilities due to compact sizeRequires more space, suitable for larger facilities
    BudgetLower initial cost, ideal for smaller businesses or startupsHigher initial cost, may require a substantial budget
    Product SizeBest for smaller productsCan handle larger product sizes
    Production VolumeSuitable for lower production volumesIdeal for higher production volumes
    Staff TrainingEasier to operate, requires less intensive trainingMore complex, may require specialized training
    FunctionalityBasic functions and capabilitiesProvides a broader range of functions and capabilities

    Which One is For You?

    The choice between a compact VFFS machine and a big size VFFS machine largely depends on your specific needs, budget, space, and the nature of the products you are packaging. If you have a smaller operation with limited space and are packaging smaller goods, a compact VFFS machine might be the perfect fit. If, however, you have larger production volumes, need more customization options, or are packaging larger products, a big size VFFS machine may be more suitable.

    Components of a VFFS machine

    A typical VFFS machine is made up of several core components, each having a specific function in the packaging process.

    1. Film Roll: The film roll forms the basis of the package. The choice of film material largely depends on the product to be packaged, shelf life requirements, and cost considerations. Plastic films like polyethylene, polypropylene, and various laminates are commonly used.

    2. Forming Collar: The forming collar, or forming tube, takes the flat film and transforms it into a cylindrical shape, effectively creating the “bag” in which the product is filled.

    3. Vertical Seal Bar: Once the film is shaped, the vertical seal bar creates the longitudinal “back” seal of the bag, securing the sides of the bag together.

    4. Filling System: The filling system is a critical part of the VFFS machine. Depending on the product to be packaged, the filling system could be volumetric (for solid products), gravimetric (for products that need to be weighed), or liquid/paste fillers.

    5. Horizontal Seal Bars: The final step in the process involves the horizontal seal bars, which seal the “top” of the bag (which becomes the bottom of the next bag).

    Packaging Process of VFFS Machine

    Understanding the packaging process in more detail can help to appreciate the efficiency and versatility of VFFS machines.

    1. Film Feeding: The process begins with loading the film roll onto the machine. The film is typically guided through a series of rollers to ensure smooth and constant feeding into the forming collar.
    2. Bag Forming: As the film reaches the forming collar, it is folded into a cylindrical shape. The vertical sealing bar then applies heat and pressure to seal the overlapping edges of the film, forming a continuous tube.
    3. Filling: While the tube is being formed, the product is simultaneously dropped down the center of the tube. The timing and speed of this process are crucial to ensure the right amount of product is dispensed into each bag.
    4. Sealing and Cutting: After the product is dispensed, the horizontal sealing bars move in to create the ‘top’ seal of the current bag and the ‘bottom’ seal of the next bag. A cutting mechanism then cuts the filled bag free from the continuous film tube.

    VFFS Machine Bag types

    One of the biggest advantages of VFFS machines is the variety of bag types they can produce. Depending on the product and specific packaging needs, you can choose from several styles:

    • Pillow Bags: The simplest and most common bag style, ideal for a wide range of products.

    • 3/4-Side Seal Bags: Ideal for flat, non-bulky items. All four sides of the bag are sealed for a uniform appearance, often used for products like coffee, tea, or powdered mixes.

    • Stick Packs and Sachets: Small, slim bags used for single-serve portions, popular for products like sugar, condiments, or pharmaceutical powders.

    Sales always will ask you for the bag type and bag size, also the product type/size and packing weight range.

    Here are the table show you the bag type that different machine can pack.

    Compact VFFS Machines in Various Industries

    The versatility of compact VFFS machines allows them to be deployed across various industries. Here are a few examples:

    4.1 Food and Beverage

    Compact VFFS machines excel in packaging various food items, ranging from loose products like grains, coffee, and spices, to liquids such as sauces, juices, and milk. They can also pack solids like candies and chocolate.

    4.2 Pharmaceutical

    In the pharmaceutical industry, these machines are used to pack pills, capsules, powders, and liquids. The machines’ precise filling mechanisms ensure accurate doses, and their sealing capabilities help maintain the products’ integrity and sterility.

    4.3 Cosmetics

    For the cosmetics industry, compact VFFS machines can package a range of products, from creams and lotions to powders. The machines can handle different packaging materials and shapes, making them a versatile choice for this industry.

    4.4 Hardware and Industrial

    Compact VFFS machines can also be used in the hardware and industrial sector to pack items such as nuts, bolts, washers, and other small parts. They can handle different sizes and weights, making them a practical choice for these industries.

    Load More

    Compact VFFS Machine Characteristics

    • Single Chips Control board for simplifying the operation; Colorful LCD for visual
      display
    • Adopt limitless speed adjustor for wider range, packing length is controlled by stepper
      motor to guarantee the cutting position.
    • Film auto tracking, length registered by photo sensor.
    • Independent temperature adjustment.
    • Applicable to equip with Date Code, Gas-Flushing Device, Strip Pack device etc
      optional equipments for high requirements.

    Factors to Consider When Choosing Compact VFFS Machine

    Choosing the right Compact  VFFS machine involves several considerations. Understanding the specific needs of your product and operation is crucial in making the right decision. Here are a few factors to consider:

    • Product Characteristics: The type, size, and consistency of the product will influence the choice of the filling system, the film material, and the bag type.

    • Production Volume: The required production speed will determine the size and complexity of the machine. High-volume operations may need machines with multiple filling and sealing stations.

    • Budget: The price of VFFS machines can vary greatly, from simple, single-station machines to complex, multi-station systems. The budget should reflect the requirements of your operation.

    • Maintenance and Support: Consider the availability of spare parts, technical support, and maintenance services when choosing a VFFS machine.

    • Cost：Cost is always a major factor when purchasing new equipment. However, rather than focusing solely on the initial cost, consider the total cost of ownership over the life of the machine, which includes maintenance, energy use, and consumables.

    In order to provide you the correct packing equipment for your business. We hope we can get more information from your side. The under questions list will help us reduce the checking time and save time for you. You can download the Excel table at the end of this part.
    download the Excel table at the end of this part.

    Question List

    Your Answer

    Note

    01 What kind of product you are going to pack? If we can get some samples/photos to assess?



    02 Could you tell us the packing weight range?



    03 Do you have the sample bags and bag size?



    04 If you can send us your bag photos or design? If you can send us your bags to our factory address to test?





    05 Could you let us know your plant size or layout? Is there any celling height limit?



    06 What’s your factory power supply voltage type?



    07 When you are going to apply this set of machines?



    08 For self-use or resale to others? Which Country?



    09 The packing speed requirements.



    10 Other requirements for the packing process.



    How to Choosing VFFS Machine Manufacturer

    When you’re in the market for a Vertical Form Fill Seal (VFFS) packaging machine, the choice of the manufacturer is as important as the machine itself. Here are some factors to consider when choosing a VFFS machine and its manufacturer:

    • Manufacturer Reputation and Expertise: First and foremost, the reputation and expertise of the manufacturer should be taken into consideration. Research on their experience in the industry, the quality of their machines, and their track record in terms of customer satisfaction.

    • Machine Features and Capabilities:It’s important to fully understand the capabilities of the VFFS machine you’re considering. Key factors to assess include the types of bags it can produce, its speed, its compatibility with different packaging materials, and its ability to accommodate the specific product you intend to package.

    • Integration with Your Current Setup: Consider how well the new machine will integrate with your existing production line. Check whether it can seamlessly fit into your current processes or if modifications will be necessary.

    • Training and Support: A good manufacturer will offer comprehensive training to your staff on the operation and maintenance of the machine. They should also provide a solid after-sales service, including quick response times for technical support and readily available spare parts.

    • Cost is always a major factor when purchasing new equipment. However, rather than focusing solely on the initial cost, consider the total cost of ownership over the life of the machine, which includes maintenance, energy use, and consumables.

    • Technology and Innovation：Lastly, consider how forward-thinking the manufacturer is. Do they stay up-to-date with the latest trends and technological advancements in the packaging industry? Are their machines adaptable and upgradeable to accommodate future needs?

    Conclusion

    Compact VFFS machines represent a significant advancement in the packaging industry, offering businesses a versatile, efficient, and cost-effective solution for their packaging needs. By understanding the intricacies of these machines and how to effectively utilize them, businesses can greatly improve their packaging operations, enhance their productivity, and ultimately, contribute to their success.
