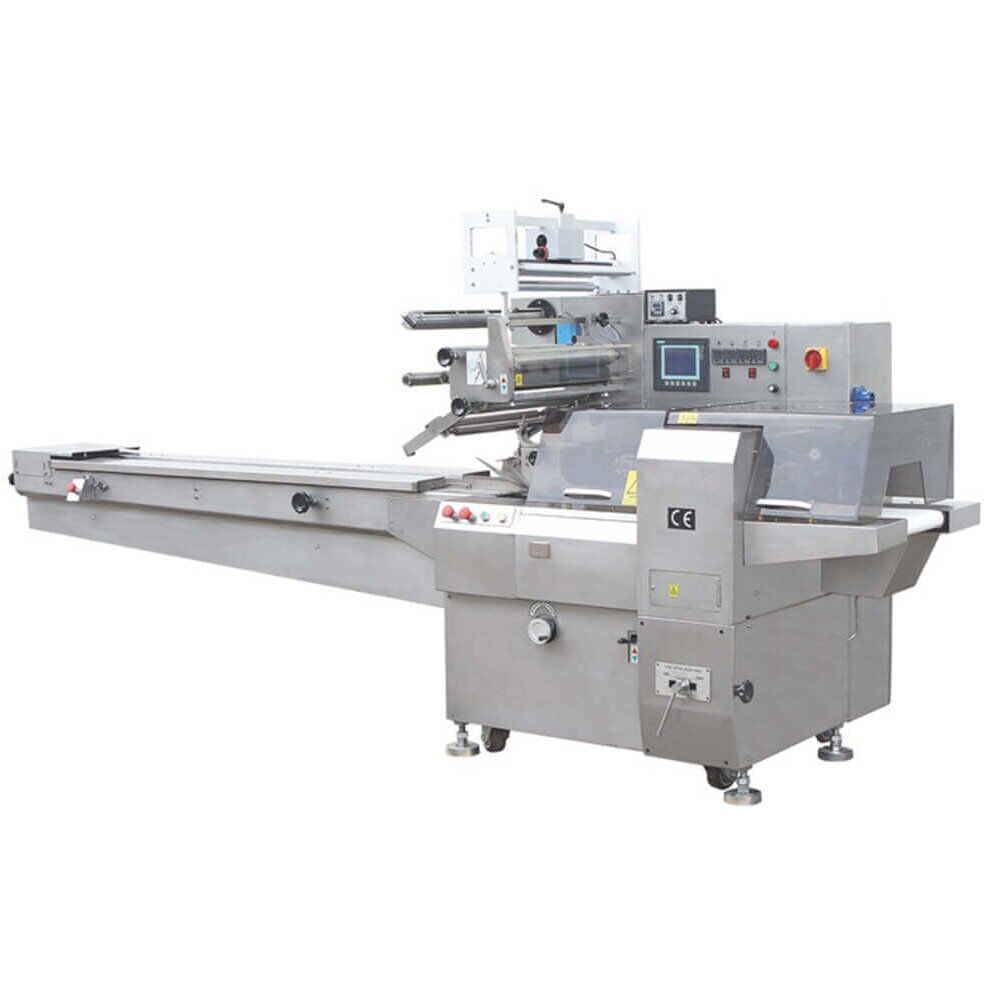

Automatic Candy Feeding Pillow Wrapping Machine (HFFS) FW-500

Description

Principal Features:

Length of pack altered by keypad.

SICK print registration unit.

Product wrapping counter.

Adjustable folding box.

Individual temperature controls.

Fitted with zig zag blades.

Speed variable by electronic control.

Reel runout sensor.

All product contact parts in stainless steel or food quality plastic.

Options

Coder.Gusset Device.Euro Slot Jaws.Nitrogen Gas‐Flushing.
Full stainless steel construction for harsh environment.

Additional Info
Model	FW-500
Speed	20-200Packs/min
Packing bag length (Single or Double Knives Configuration for option)	Standard type:90‐180mm(3.5”‐7”),150‐360mm(5.9”‐14.1”) Extended type:120‐200mm(4.7”‐7.8”) 180‐460mm(7”‐18.1”)
Film Web Width	Standard type:Max.430mm(16.9”) Extended type:Max.500mm(19.6”)
Products’ height	Standard type:Up to 70mm(2.7”) Extended type:Up to 100mm(3.9”)
Voltage	220V/50HZ, 1 phase or per customer specification
Power consumption	3.0kw
Machine Dimension	L3800×W1150×H1500mm
Machine Weight	1000KG
