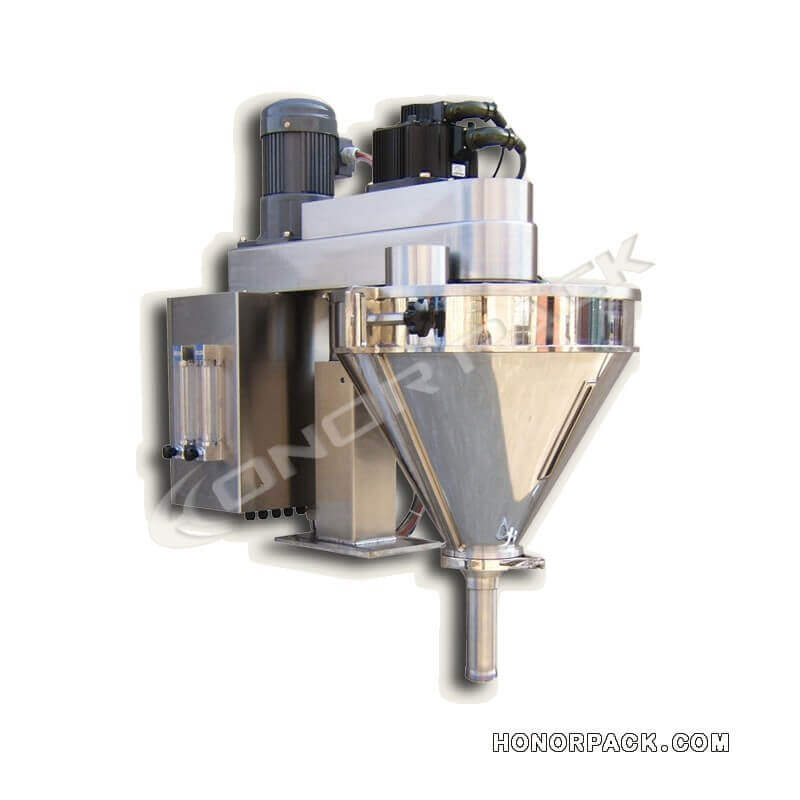

AFL-3000 Auger Filler

Category

AFL-3000 Auger Filler

Auger Filler for powder, range 100-3000g, speed up to 80 discharges per min.


Description

Application:

AFL series Auger Filler with servo motor driven, designed for dosing powder products, suit for a wide range of loose powdery products, such as flour, powdered milk, cocoa, icing sugar, baby food, ground spices, finely ground coffee, chemical products, etc.
With ability to Synchronization with most of automatic packing machine, it works to dosing, filling, sealing job. (Read more for Vertical Form Fill Seal With Auger Filler Packing System)
This Series Auger Filler equips side open hopper for easy cleaning, maintenance.

Features:

  • SS 304 Frame, with hydraulic elevator, meets GMP request, also for some corrosive powder.
  • Compact system, stable and durable.
  • Low noise, maintenance free Servo motor driven, precious, fast, high torque, long life, speed adjustable.
  • Air proof hopper, dust proof with easy nitric flushing. Discharge gate with dust collector.
Additional Info
Working Method:

Auger Screw

Auger Diameter:

35mm – 100mm (1.4″ – 3.9″)

Packing Range:

100-3000 gram Change Auger

Working Speed:

20 – 80 Discharge Per Min

Accuracy:

≤+/-0.3-1%

Voltage

3 Phrase 380v or Single Phrase 220v

Power

2.5Kw Servo Motor For Auger: 2000W, Mixing Motor:400W.

Weight:

150Kgs (330.75 lb.)

Volume of Hopper:

60 Liter

Dimension:

Refer to Product Pictures
