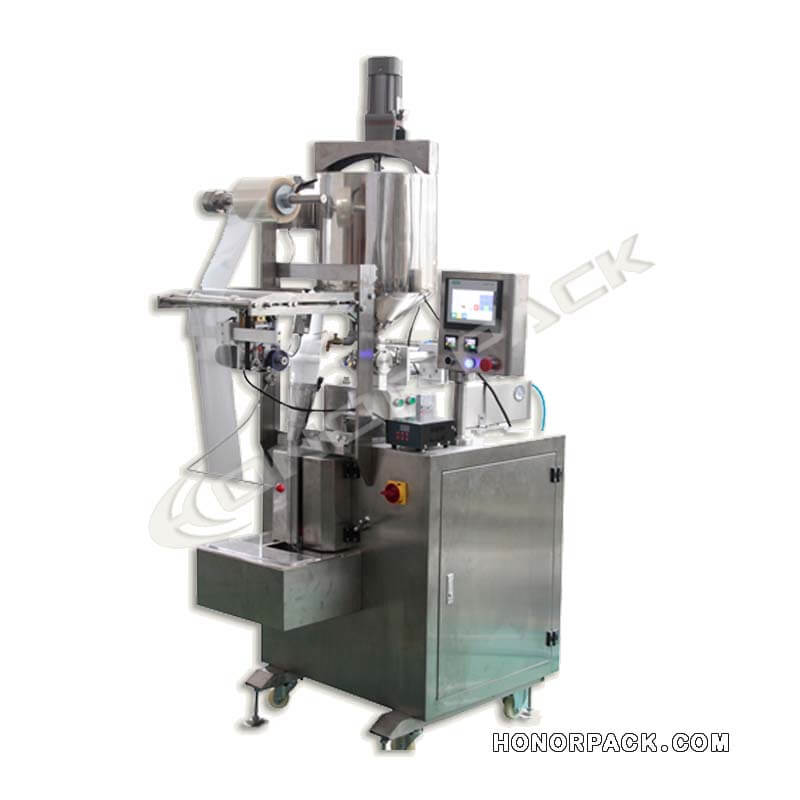

Pillow Bag Liquid Packing Machine VFH5/6-L320

  • Make Pillow Bag Piston Filler Integrated Efficiency with 20 to 40 Bags per MIN.
  • Stainless Steel Frame and Steel Frame with Powder Coating for Choose

Max. speed

80 bpm

Film Width

Max.

320mm(12.6″)

Description

Basic Information:
    • PLC & 7-inch touch screen control. Working Status Indicated.
    • Photocell for film length registered and automatic adjustment in 3 bags.
    • Simple and fast bag size changeover with the one-piece forming set.
    • Work with most of the laminated heat seal films.
    • All product contact parts in #304 stainless steel or food-grade plastic.
    • Sealing Jaws cover protector.
MIN.
  • Stainless Steel Frame

Additional Info
Bag Styles:
Pillow Bag, Stick Bag
Bag Width:
30 to 135mm (1.2 to 5.3″)
Bag Length:
30 to 180mm (1.2 to 7″)
Product Characteristic:
Liquids, Pastes
Dosing System Compatible:
Piston Filler
Running Motion:
Intermittent
Working Efficiency:
20-60 Bags/Min
Control By:
PLC with Touch Screen
Date Coding Can Be:
Hot Stamping Coder
Options Available:
Perforation, SS Frame, Air Expeller
Film & Reel:
0.04-0.12mm (30-120mic.) Real Max.Dia.400mm (15.8″) Max. Reel Width 300mm (11.8″)
Power & Voltage:
1.35KW
Compress Air:
Cylinder Driven Piston Filler Need 0.4-0.6 MPa
Dimensions:
650*850*1650mm (25.6*33.5*65″)
Machine Weight:
250 KGS
