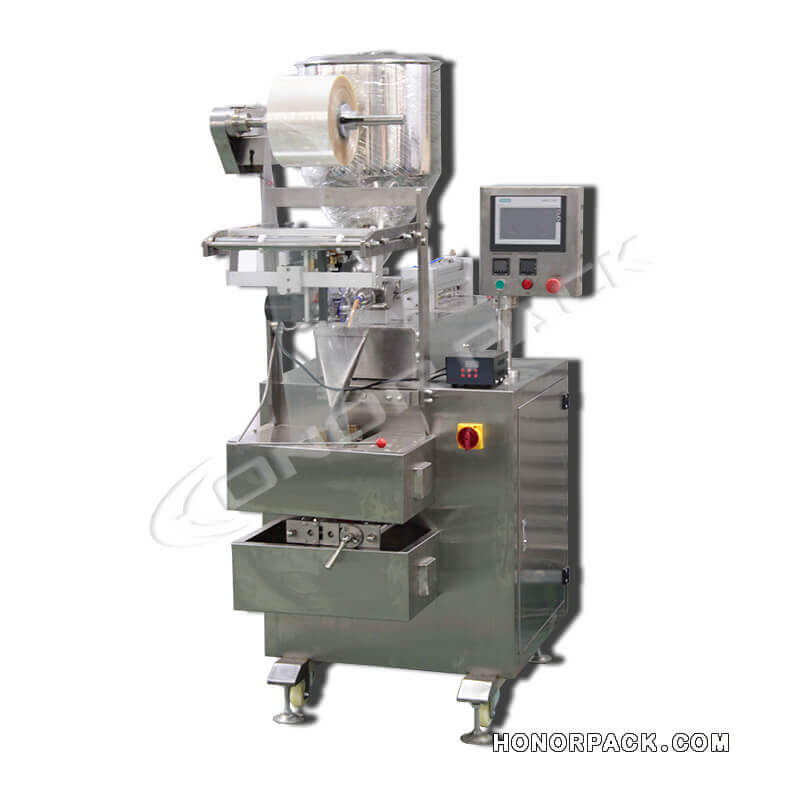

Stainless Steel 4 Side Seal Liquid Packing Machine VFH5/6-4S-L320

Stainless Steel 4 Side Seal Liquid Packing Machine VFH5/6-4S-L320

  • Make 4 Side Seal Bag
  • Piston Filler Integrated
  • The efficiency with 30 to 80 Bags per MIN.
  • Stainless Steel Frame

Description

Features:

    • PLC & 7-inch touch screen control. Working Status Indicated.
    • Photocell for film length registered and automatic adjustment in 3 bags.
    • Simple and fast bag size changeover with the one-piece forming set.
    • Work with most of the laminated heat seal films.
    • All product contact parts in #304 stainless steel or food-grade plastic.
    • Sealing Jaws cover protector.
    • Stainless Steel Frame

Specification

Additional Info
Bag Styles:

4 Side Seal Bag

Bag Width:

40 to 135mm(1.57 to 5.31″)

Bag Length:

30 to 150mm (1.2 to 5.9″)

Product Characteristic:

Liquids, Pastes

Dosing System Compatible:

Piston Filler

Running Motion:

Intermittent

Working Efficiency:

30-80 Bags/Min

Control By:

PLC with Touch Screen

Date Coding Can Be:

Hot Stamping Coder

Options Available:

Perforation, SS Frame, Air Expeller

Film & Reel:

0.04-0.12mm (30-120mic.) Real Max.Dia.400mm(15.8″) Max. Reel Width 400mm (15.8″)

Power & Voltage:

1.35KW

Compress Air:

Cylinder Driven Piston Filler Need 0.4-0.6 MPa

Dimensions:

650*850*1650mm (25.6*33.5*65″)

Machine Weight:

250 KGS
