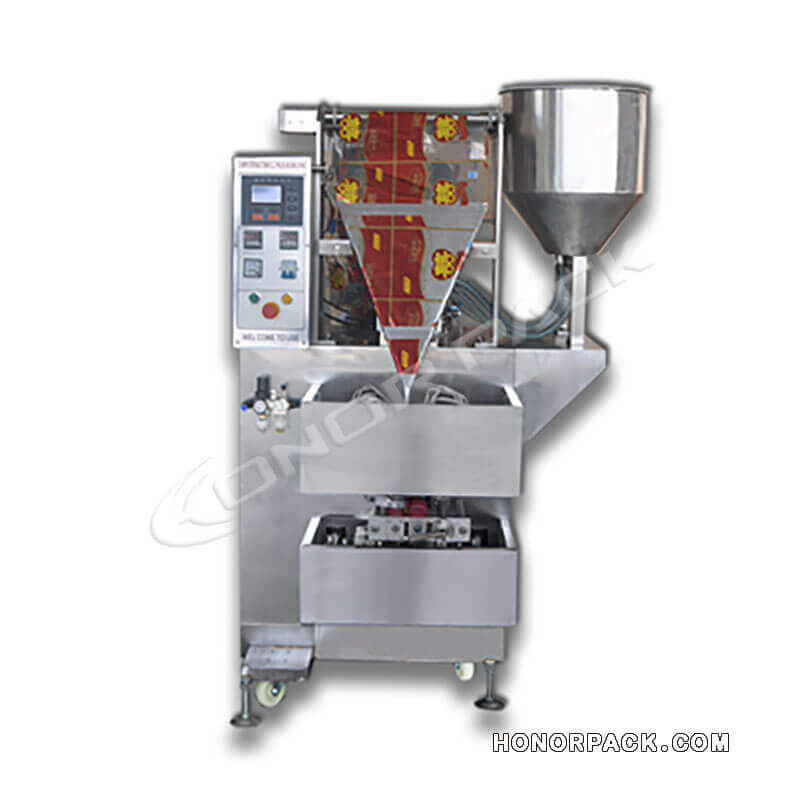

4 Line 4 Side Seal Liquid Packing Machine VFH-4S-L4

  • Make 4 Side Seal Bag(4 Lines At A Time)
  • Piston Filler Integrated
  • The efficiency with 60 to 160 Bags per MIN.
  • Stainless Steel Frame and Steel Frame with Powder Coating for Choose

Max. speed

80 bpm

Film Width

Max.

320mm(12.6″)
Category:

Description

Basic Information:
  • MCU control system with 5 inch LCD HMI. Working Status Indicated.
  • Photocell for film length registered and automatic adjustment in 3 bags.
  • Simple and fast bag size changeover with the one-piece forming set.
  • Work with most of the laminated heat seal films.
  • All product contact parts in #304 stainless steel or food-grade plastic.
  • Sealing Jaws cover protector.
Additional Info
Bag Styles:
4 Side Seal Bag, 4 lane Bag
Bag Width:
20 to 60mm (0.8 to 2.3″)
Bag Length:
30 to 100mm(1.18 to 3.94’’)
Product Characteristic:
Liquids, Pastes
Dosing System Compatible:
Auger Filler Integrated
Running Motion:
Intermittent
Working Efficiency:
60-160 Bags/Min
Control By:
MCU with LCD
Date Coding Can Be:
Hot Stamping Coder
Options Available:
SS Frame
Film & Reel:
0.04-0.12mm (30-120mic.) Real Max.Dia.400mm(15.8″) Max. Reel Width 400mm (15.8″)
Power & Voltage:
2.0KW
Compress Air:
Cylinder Driven Piston Filler Need 0.4-0.6 MPa
Dimensions:
820*1220*2000mm (32.3*48*78.7″)
Machine Weight:
400 KGS
