Piston Filler

Piston Filler

For filling liquids, pastes, ointment, By piston-driven cylinder to control volume.  Semi-automatic feeding liquid with the pedal switch or automatic timer; also can be synchronized with another automatic packing machine as dosing unit for different liquid.
Horizontal dual heads piston filler for free-flowing liquid, such as mineral water, edible oil, juice, ink, detergent, perfume, viscous liquid, such as ketchup, mayonnaise, cream, butter, jam, honey, shampoo, etc.


Description

Option::

  • Festo Piston
  • Food and pharmaceutical S/S 316 grade stainless steel contact parts.
  • Standard with electric solenoid control, we have pneumatic solenoid valve to work without electric option at full Pneumatic Driven

Features:

  • Standard with Airtac Piston.
  • All piston filler made from S/S 304 grade stainless steel and aluminum conforms to GMP.

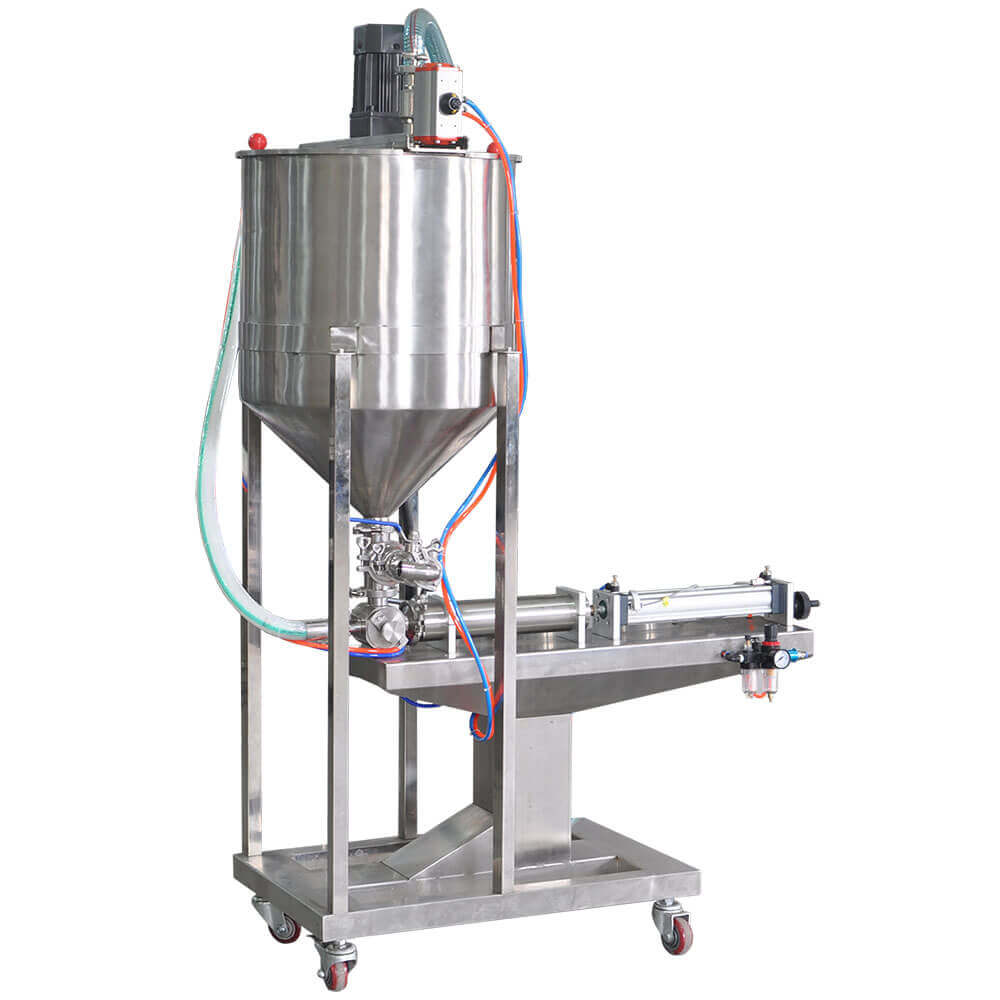

  • Viscous Liquid Model with stainless steel product hopper
  • Operated by foot pedal switcher or by an automatic timer.
  • With Anti-leaking system
  • Product suction and dispensing speed adjustable.
  • No-Tools for set-up and adjustment.
  • Sanitary tri-clamp connections easy wash
  • Quick-release nozzle and feed pipe
  • Small footprint for simple bench mounting
  • Be able to be equipped with another automatic packaging machine
  • Most commonly applicable for pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticides and other industrials.

Technical Specifications:

Air Consumption: 0.6CBM/H

Air Supply Pressure: 0.4-0.6Mpa

Operation Efficiency: 20-40 bottles per min (depends on product and container size)

Filling Precision: ≦±1%

Dimension & Weight: Variable, depending on the application

Filling range:
Model

Recommended Range

Ounce

DPFL‐0060

25‐60ml(<25ml needs customized)

0.84‐2.02

DPFL‐0125

50‐125ml

1.69‐4.22

DPFL‐0250

100‐250ml

3.38‐8.45

DPFL‐0500

200‐500ml

6.76‐16.90

DPFL‐1000

300‐1000ml

10.14‐33.81

DPFL‐2500

500‐2500ml

16.91‐84.53

DPFL‐5000

1000‐5000ml

33.81‐169.07
