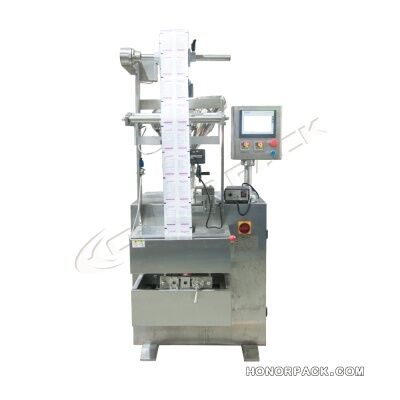

4 Side Seal Powder Packing Machine VFH6-4S-P320

  • Make 4 Side Seal Bag
  • Auger Filler Integrated
  • All machine body are made of stainless steel SS 304 .

Max. speed

60 bpm

Film Width

Max.

320mm(12.6″)
Category: Tag:

Description

Basic Information:
  • PLC & 7 inch touch screen control,program is more flexible,specially customized for you.
  • More safety guard and prevent wrong operation from injured .
  • More intelligent , do not waste the film and with counting function .
  • All machine body are made of stainless steel SS 304 .
  • Various types of heating sealable laminated films can be run on the machine .
Additional Info
Bag Styles:
4 Side Seal Bag
Bag Width:
25 to 135mm (1.0 to 5.3″)
Bag Length:
30 to 150mm (1.2 to 5.9″)
Product Characteristic:
Powders
Dosing System Compatible:
Auger Filler Integrated
Running Motion:
Intermittent
Working Efficiency:
40-60 Bags/Min
Control By:
PLC with HMI Touch Screen
Date Coding Can Be:
Hot Stamping Coder
Options Available:
Perforation, SS Frame
Film & Reel:
0.04-0.12mm (30-120mic.) Real Max.Dia.400mm (15.8″) Max. Reel Width 300mm (11.8″)
Power & Voltage:
2.0KW
Compress Air:
No Request
Dimensions:
820*1220*2000mm (32.3*48*78.7″)
Machine Weight:
300 KGS
