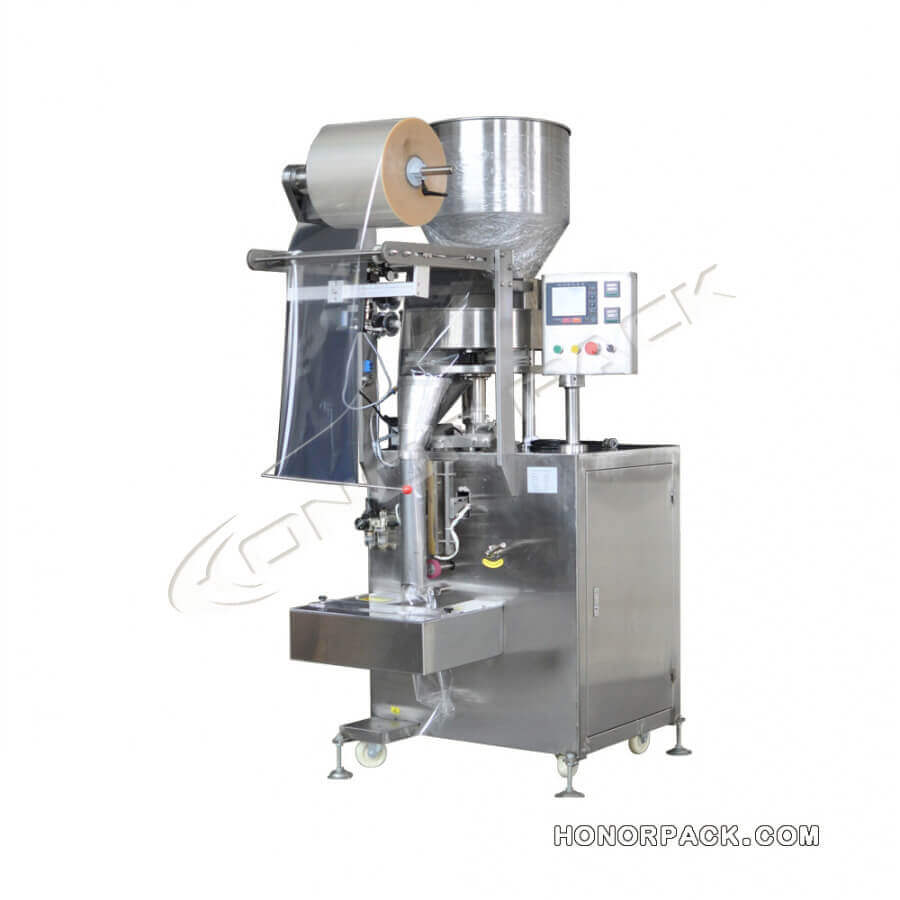

Stainless Steel 3 Side Packing Machine Seal VFH5/6-3S-G320

  • Make 3 Side Seal Bag
  • Volumetric Cup Integrated
  • Stainless Steel Frame

Max. speed

80 bpm

Film Width

Max.

320mm(12.6″)

Description

Basic Information:
    • PLC & 7-inch touch screen control. Working Status Indicated.
    • Photocell for film length registered and automatic adjustment in 3 bags.
    • Simple and fast bag size changeover with the one-piece forming set.
    • Work with most of the laminated heat seal films.
    • All product contact parts in #304 stainless steel or food-grade plastic.
    • Sealing Jaws cover protector.

Additional Info
Bag Styles:
3 Side Seal Bag
Bag Width:
25 to 135mm (1.0 to 5.3″)
Bag Length:
30 to 150mm (1.2 to 5.9″)
Product Characteristic:
Granules
Dosing System Compatible:
Volumetric Cup Integrated
Running Motion:
Intermittent
Working Efficiency:
35-80 Bags/Min
Control By:
PLC with Touch Screen
Date Coding Can Be:
Hot Stamping Coder
Options Available:
Perforation, SS Frame, Nitrogen Flushing, Air Expeller
Film & Reel:
0.04-0.12mm (30-120mic.) Real Max.Dia.400mm (15.8″) Max. Reel Width 270mm (10.6″)
Power & Voltage:
1.2KW
Compress Air:
No Request
Dimensions:
650*850*1650mm (25.6*33.5*65″)
Machine Weight:
250 KGS
