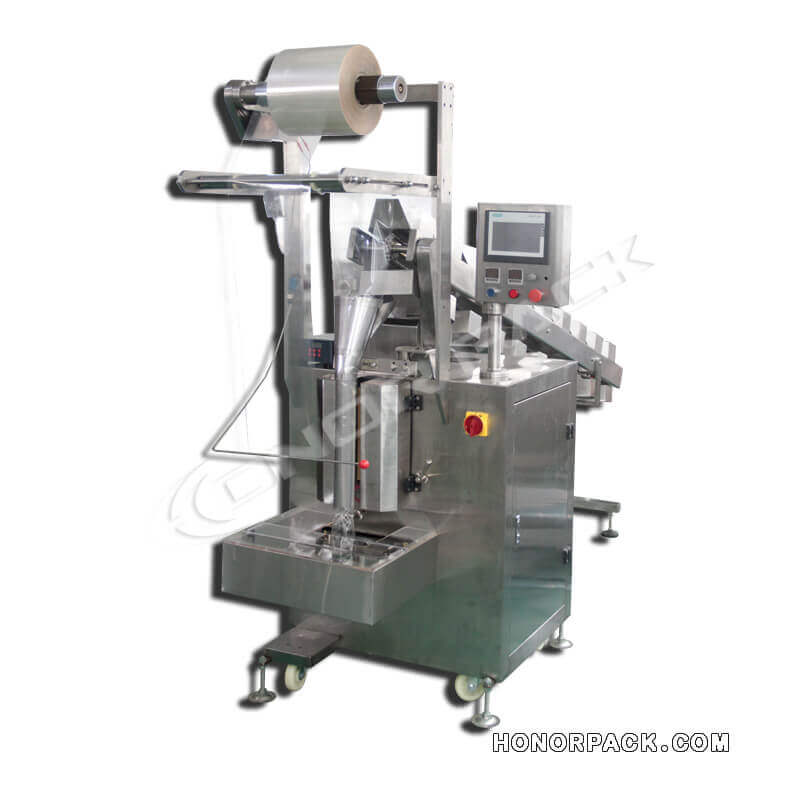

Buckets Conveyor Fill And Seal Machine VFH6-B420

  • Make Pillow Bag.
  • Counting Plate Integrated.
  • All the machines are made of stainless steel SS304.

Max. speed

60 bpm

Film Width

Max.

420mm(16.5″)
Category:

Description

Basic Information:
    • PLC & 7-inch touch screen control. Working Status Indicated.
    • Photocell for film length registered and automatic adjustment in 3 bags.
    • Simple and fast bag size changeover with the one-piece forming set.
    • Work with most of the laminated heat seal films.
    • All product contact parts in #304 stainless steel or food-grade plastic.
    • Sealing Jaws cover protector.
MIN.
  • Stainless Steel Frame

Additional Info
Bag Styles:
Pillow Bag
Bag Width:
30 to 135mm (1.2 to 5.3″)
Bag Length:
30 to 180mm (1.2 to 7″)
Product Characteristic:
Granules
Dosing System Compatible:
Counting Plate Integrated
Running Motion:
Intermittent
Working Efficiency:
20-60 Bags/Min
Control By:
PLC with Touch Screen
Date Coding Can Be:
Hot Stamping Coder
Options Available:
Perforation, SS Frame, Nitrogen Flushing, Air Expeller
Film & Reel:
0.04-0.12mm (30-120mic.) Real Max.Dia.400mm (15.8″) Max. Reel Width 300mm (11.8″)
Power & Voltage:
2.0KW
Compress Air:
Need 0.6 MPa 0.36 M3
Dimensions:
950 x 750 x 1650mm (33.5 x 25.6 x 65”)
Machine Weight:
400 KGS
