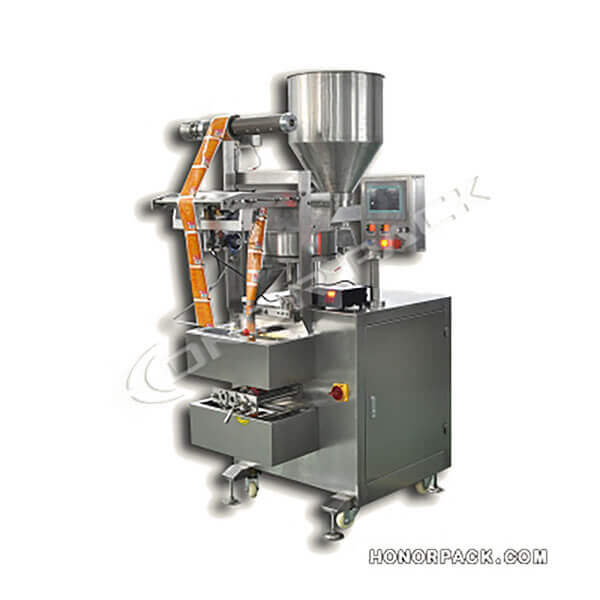

Stainless Steel 4 Side Packing Machine Seal VFH5/6-4S-G320

Stainless Steel 4 Side Packing Machine Seal VFH5/6-4S-G320

  • Make 4 Side Seal Bag
  • Volumetric Cup Integrated
  • Stainless Steel Frame

Description

Features:

  • PLC & 7-inch touch screen control. Working Status Indicated.
  • Photocell for film length registered and automatic adjustment in 3 bags.
  • Simple and fast bag size changeover with the one-piece forming set.
  • Work with most of the laminated heat seal films.
  • All product contact parts in #304 stainless steel or food-grade plastic.
  • Sealing Jaws cover protector.
  • Stainless Steel Frame

Specification

Additional Info
Bag Styles:

4 Side Seal Bag

Bag Width:

40 to 135mm(1.57 to 5.31″)

Bag Length:

30 to 150mm (1.2 to 5.9″)

Product Characteristic:

Granules

Dosing System Compatible:

Volumetric Cup Integrated

Running Motion:

Intermittent

Working Efficiency:

35-80 Bags/Min

Control By:

PLC with Touch Screen

Date Coding Can Be:

Hot Stamping Coder

Options Available:

Perforation, SS Frame, Nitrogen Flushing, Air Expeller

Film & Reel:

0.04-0.12mm (30-120mic.) Real Max.Dia.400mm (15.8″) Max. Reel Width 270mm (10.6″)

Power & Voltage:

1.8KW

Compress Air:

No Request

Dimensions:

650*850*1650mm (25.6*33.5*65″)

Machine Weight:

250 KGS
