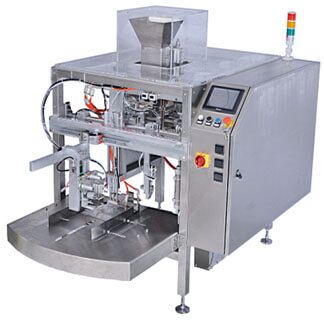

Automatic Mini Doy Bagger Machine JRM-450

Automatic Mini Doy Bagger Machine JRM-450

This JRM-450 is a suitable packing machine for large size 3-side seal bag, max to 450mm.

Special designed for medium and large pre-made bags, but saves space than other similar pre-made bag packing machine.


Description

Equipped with the different dosing systems to pack multiple kinds of material.

With smart PLC control system, machine is easy to operate and has functions to detect filling status, avoid to waste material& bags, self-diagnose.

Main components with world-famous brands to keep high quality, like Mitsubishi PLC, Mitsubishi servo motor, Piab Vacuum generator, AirTac Pneumatics component, Omron PID temperature controller.

Specification

Additional Info
Pouch Type:

Zipper Pouch,Spout Pouch,Pillow Bag, 3 Side Bag, 4 Side Bag, Flat Bag

Working Station:

8 Working-Station

Filling Range:

100-3000g

Pouch Width:

200-450mm

Pouch Length:

200-600mm

Capacity:

Up to 40 Bags/Min(Depends on products’ natures and filling weight)

Dosing System:

Multi-head Scale, Auger Filler, Piston Filler, Volumetric Cup

Power Supply:

Per customer specification

Power Consumption:

Max. 3.5KW

Compressed Air:

400 L/Min. Zip Function 580 L/Min.

Machine Dimension:

2000x1200x1400mm (78.7’x47.2’x55.1′)

Machine Weight:

1250Kg

Principal Features:
8 work stations: 1) bag picking; 2) coding; 3) zip unit; 4) bag opening; 5) according to the material; 6) according to the material; 7) sealing and closing zip; 8) tidy to output;

  • Automatic Pre-made Pouch Rotary Packing Machine designed by Korea
  • Equipped with a 10” PLC touch screen with a graphic interface and an automatic lubricating system.
  • Washing down the frame, parts above the table made by 304# stainless steel and alumina material.
  • The whole machine weighs 1.8 tons, and its grippers can work at the 5 KGS bag loading.
  • Options for 6, 8, 10 workstations; also with vacuum rotary packaging machine with the rotary vacuum chamber.
  • Verify weight in weighing station, and compensate by servo filling system.
  • Vacuum pouch in sealing position
  • Spout at the center of the pouch

Please click below to watch the production process of  premade pouch packaging machine.
