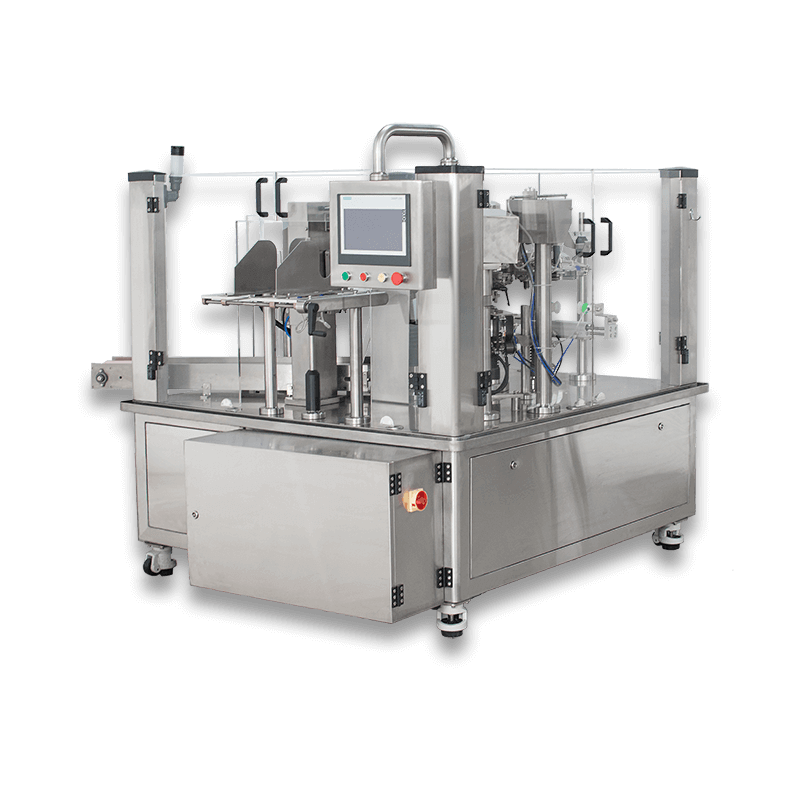

Rotary Packing Machine JR8-240

Rotary Packing Machine JR8-240

Support bag width from 80 mm up to 240 mm to work with automatic pick up bags, coding batch code, opening bag, material filling, bag sealing and output.

Option: Nitrogen Flush, Vacuum, Multi-Filling, Spout Pouch (Conner or Center), Zip Pouch

Description

Specification

Additional Info
Pouch Type:

Zipper Pouch,Spout Pouch,Pillow Bag, 3 Side Bag, 4 Side Bag, Flat Bag

Working Station:

8 Working-Station

Filling Range:

5-1500g

Pouch Width:

80-240mm(3.15”-7.87”)

Pouch Length:

100-300mm(3.94”-11.8”)

Capacity:

Up to 50 Bags/Min(Depends on products’ natures and filling weight)

Dosing System:

Multi-head Scale, Auger Filler, Piston Filler, Volumetric Cup

Power Supply:

Per customer specification

Power Consumption:

Max. 3.5KW

Compressed Air:

400 L/Min. Zip Function 580 L/Min.

Machine Dimension:

2000x1200x1400mm (78.7’x47.2’x55.1′)

Machine Weight:

1850Kg

Principal Features:
8 work stations: 1) bag picking; 2) coding; 3) zip unit; 4) bag opening; 5) according to the material; 6) according to the material; 7) sealing and closing zip; 8) tidy to output;

  • Automatic Pre-made Pouch Rotary Packing Machine designed by Korea
  • Equipped with a 10” PLC touch screen with a graphic interface and an automatic lubricating system.
  • Washing down the frame, parts above the table made by 304# stainless steel and alumina material.
  • The whole machine weighs 1.8 tons, and its grippers can work at the 5 KGS bag loading.
  • Options for 6, 8, 10 workstations; also with vacuum rotary packaging machine with the rotary vacuum chamber.
  • Verify weight in weighing station, and compensate by servo filling system.
  • Vacuum pouch in sealing position
  • Spout at the center of the pouch

Please click below to watch the production process of  premade pouch packaging machine.
