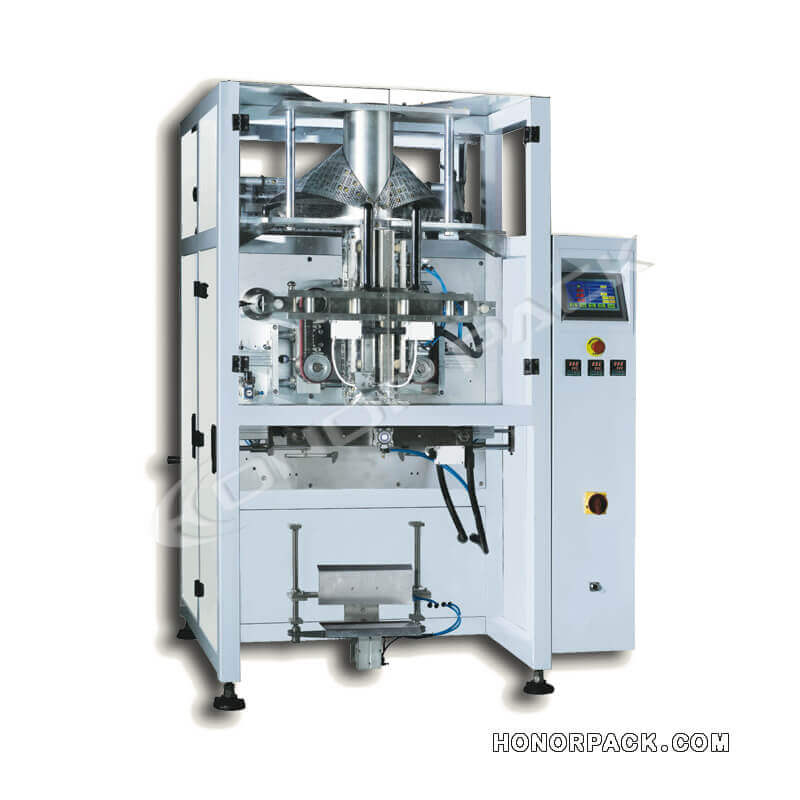

Vertical Form Fill And Seal Machine VFJ-720

  • Design For Large Dimension Packages
  • Make Pillow Bag, Gusseted Bag, Block Bottom Bag

Max. speed

180 bpm

Film Width

Max.

720mm(28.3″)

Description


  • Fast Change Jaws

    Change over for heat-sealable laminated film or polyethylene materials
  • Fast Forming Tube Change

    Simple and fast forming tube change without tools
  • Graphic Touch Screen HMI

    Intelligent control by PLC & Touch-Screen HMI with multi-languages
  • Servo & Vacuum Pulling

    Dual servo system for film transport with vacuum pulling belts
  • Safe Door Interlock Guard

    A safety door with interlock function, never can accesses to dangerous parts during running
  • Smooth & Low Noise

    Perfect film tension rewinding for high-performance bagging
  • Perfect Film Rewinding

    Perfect film tension rewinding for high-performance bagging
  • Servo Technology Jaws

    Servo technology for reciprocation sealing l8
  • Smooth operation in low noise

    Smooth operation in low noise
  • Versatile to the filling system

    Versatile to Synchronize any filling system
  • Weigh, Form Coding Fill & Seal, Output

    Hot stamping, inkjet, thermal transfer & labeler.
  • Air Mandrel

    More easy to change film web in air mandrel
  • EPC

    Electric Position correct
  • 8 Product Recipes

    Storage for 8 product recipes
Piston Filler—Liquid
Volumetric Cup—Powers
Line Scale Weigher—Granules
Combination Scale Weigher—Granules
Auger Filler—Powers
Additional Info
Bag Styles:
Pillow Bag, Gusseted Bag
Bag Width:
100 to 350mm (3.9 to 13.8″)
Bag Length:
80 to 470mm (3.1 to 18.5″)
Product Characteristic:
Granules, Powders, Liquids, Pastes
Dosing System Compatible:
Volumetric Cup, Piston Filler, Linear Scale, Multi-Head Scale, Auger Filler
Running Motion:
Intermittent
Working Efficiency:
5-60 bags/min
Control By:
PLC with Touch Screen
Date Coding Can Be:
Hot Stamping Coder, Thermal Transfer Coder, Label Applicator
Options Available:
Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing, Coffee Valve, Air Expeller, Heavy Bag, Heating & Mixing Hopper
Power & Voltage:
3 KW
Compress Air:
1.0 MPa 0.4 M3/min
Dimensions:
1700*1270*1900mm (66.9*50*74.8″)
Machine Weight:
900 KGS
