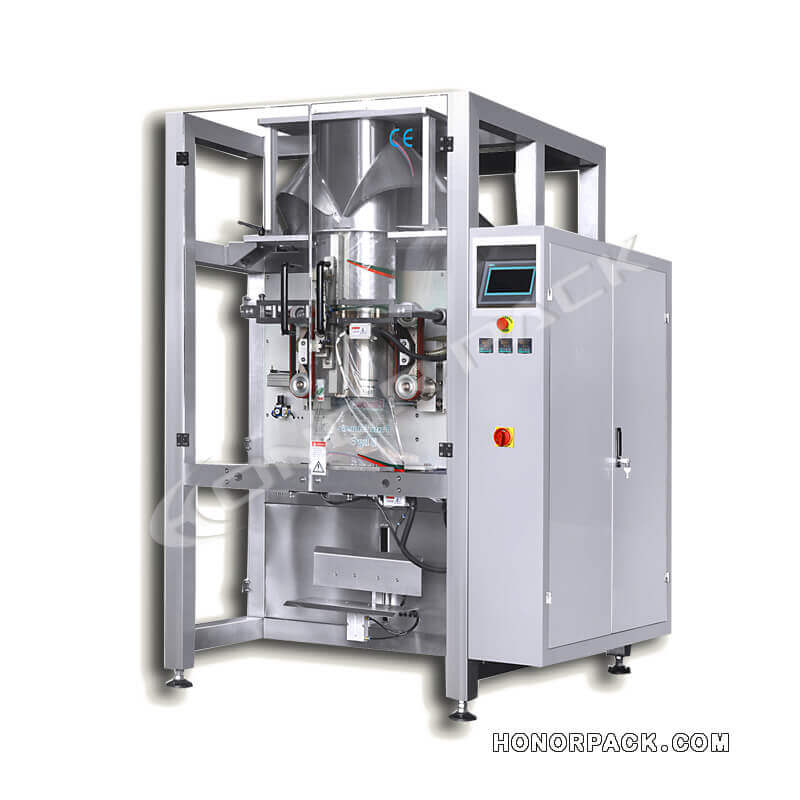

VFFS Packaging Machines VFJ-920

  • Design For Large Dimension Packages,VFFS Packaging Machine
  • Make Pillow Bag, Gusseted Bag, Block Bottom Bag

Max. speed

40 bpm

Film Width

Max.

920mm (36.2″)
Category:

Description



  • Fast Change Jaws

    Change over for heat-sealable laminated film or polyethylene materials

  • Fast Forming Tube Change

    Simple and fast forming tube change without tools

  • Graphic Touch Screen HMI

    Intelligent control by PLC & Touch-Screen HMI with multi-languages

  • Servo & Vacuum Pulling

    Dual servo system for film transport with vacuum pulling belts

  • Safe Door Interlock Guard

    A safety door with interlock function, never can accesses to dangerous parts during running

  • Smooth & Low Noise

    Perfect film tension rewinding for high-performance bagging

  • Perfect Film Rewinding

    Perfect film tension rewinding for high-performance bagging

  • Servo Technology Jaws

    Servo technology for reciprocation sealing l8

  • Smooth operation in low noise

    Smooth operation in low noise

  • Versatile to the filling system

    Versatile to Synchronize any filling system

  • Weigh, Form Coding Fill & Seal, Output

    Hot stamping, inkjet, thermal transfer & labeler.

  • Air Mandrel

    More easy to change film web in air mandrel

  • EPC

    Electric Position correct

  • 8 Product Recipes

    Storage for 8 product recipes

  • PLC control with stable, reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, and finished in one operation
  • Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable
  • Servo control, high precision orientation, size more nicety
  • External film releasing mechanism: simpler and easier installation of packing film
  • Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple
  • Close down type mechanism, defending powder into inside of machine
Piston Filler—Liquid
Read more
Volumetric Cup—Powers
Read more
Line Scale Weigher—Granules
Read more
Combination Scale Weigher—Granules
Read more
Auger Filler—Powers
Read more
Additional Info
Bag Styles:
Pillow Bag
Bag Width:
180 to 450mm (7.1 to 17.7″)
Bag Length:
100 to 570mm (4.0 to 22.4″)
Product Characteristic:
Granules, Powders, Liquids, Pastes
Dosing System Compatible:
Volumetric Cup, Piston Filler, Linear Scale, Multi-Head Scale, Auger Filler
Running Motion:
Intermittent
Working Efficiency:
5-40 bags/min
Control By:
PLC with Touch Screen
Date Coding Can Be:
Hot Stamping Coder, Thermal Transfer Coder, Label Applicator
Options Available:
Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing, Coffee Valve, Air Expeller, Heavy Bag, Heating & Mixing Hopper
Power & Voltage:
6 KW
Compress Air:
1.0 MPa 0.4 M3/min
Dimensions:
1750*1510*2100mm (68.9*59.4*82.7″)
Machine Weight:
1000 KGS
