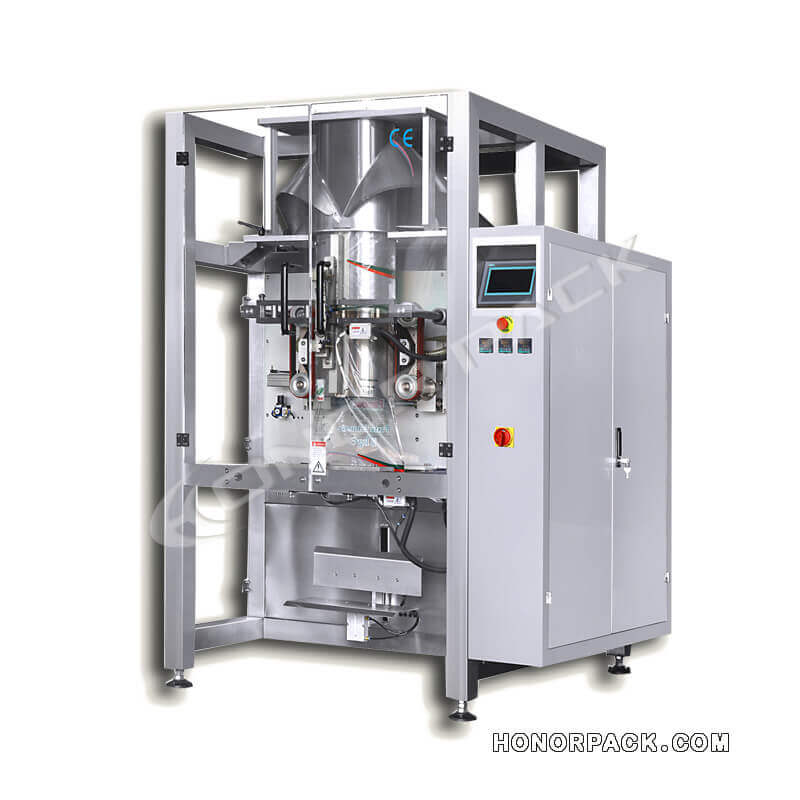

Vertical Form Fill And Seal Machine VFJ-1200

  • Design For Large Dimension Packages
  • Make Pillow Bag, Gusseted Bag, Block Bottom Bag

Max. speed

30 bpm

Film Width

Max.

1200mm (36.2″)
Category:

Description



  • Fast Change Jaws

    Change over for heat-sealable laminated film or polyethylene materials

  • Fast Forming Tube Change

    Simple and fast forming tube change without tools

  • Graphic Touch Screen HMI

    Intelligent control by PLC & Touch-Screen HMI with multi-languages

  • Servo & Vacuum Pulling

    Dual servo system for film transport with vacuum pulling belts

  • Safe Door Interlock Guard

    A safety door with interlock function, never can accesses to dangerous parts during running

  • Smooth & Low Noise

    Perfect film tension rewinding for high-performance bagging

  • Perfect Film Rewinding

    Perfect film tension rewinding for high-performance bagging

  • Servo Technology Jaws

    Servo technology for reciprocation sealing l8

  • Smooth operation in low noise

    Smooth operation in low noise

  • Versatile to the filling system

    Versatile to Synchronize any filling system

  • Weigh, Form Coding Fill & Seal, Output

    Hot stamping, inkjet, thermal transfer & labeler.

  • Air Mandrel

    More easy to change film web in air mandrel

  • EPC

    Electric Position correct

  • 8 Product Recipes

    Storage for 8 product recipes
Piston Filler—Liquid
Read more
Volumetric Cup—Powers
Read more
Line Scale Weigher—Granules
Read more
Combination Scale Weigher—Granules
Read more
Auger Filler—Powers
Read more
Additional Info
Bag Styles:
Pillow Bag
Bag Width:
200 to 580mm (7.9 to 22.8″)
Bag Length:
100 to 800mm (4.0 to 31.5″)
Product Characteristic:
Granules, Powders, Liquids, Pastes
Dosing System Compatible:
Volumetric Cup, Piston Filler, Linear Scale, Multi-Head Scale, Auger Filler
Running Motion:
Intermittent
Working Efficiency:
5-30 bags/min
Control By:
PLC with Touch Screen
Date Coding Can Be:
Hot Stamping Coder, Thermal Transfer Coder, Label Applicator
Options Available:
Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing, Coffee Valve, Air Expeller, Heavy Bag, Heating & Mixing Hopper
Power & Voltage:
6 KW
Compress Air:
1.0 MPa 0.5 M3/min
Dimensions:
2400*1800*2750mm (94.5*70.9*108.3″)
Machine Weight:
1200 KGS
