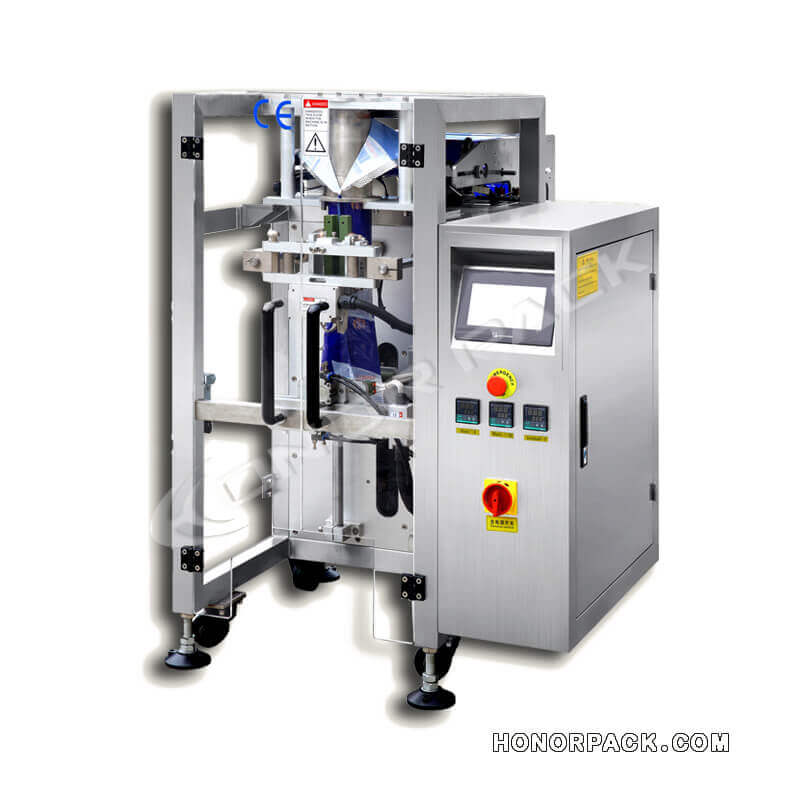

Reciprocating Continuously Motion VFJ-320

  • Reciprocating Continuously Motion
  • Design For Small Packages
  • Make Pillow Bag, Gusset, Flat Bottom
  • Or 3-Side Sealing

Max. speed

100 bpm

Film Width




  • Fast Change Jaws

    Change over for heat-sealable laminated film or polyethylene materials
  • Fast Forming Tube Change

    Simple and fast forming tube change without tools
  • Graphic Touch Screen HMI

    Intelligent control by PLC & Touch-Screen HMI with multi-languages
  • Servo & Vacuum Pulling

    Dual servo system for film transport with vacuum pulling belts
  • Safe Door Interlock Guard

    A safety door with interlock function, never can accesses to dangerous parts during running
  • Smooth & Low Noise

    Perfect film tension rewinding for high-performance bagging
  • Perfect Film Rewinding

    Perfect film tension rewinding for high-performance bagging
  • Servo Technology Jaws

    Servo technology for reciprocation sealing l8
  • Smooth operation in low noise

    Smooth operation in low noise
  • Versatile to filling system

    Versatile to Synchronize any filling system
  • Weigh, Form Coding Fill & Seal, Output

    Hot stamping, inkjet, thermal transfer & labeler.
  • Air Mandrel

    More easy to change film web in air mandrel
  • EPC

    Electric Position correct
  • 8 Product Recipes

    Storage for 8 product recipes
  • PLC & 7 inch touch screen contro. Working Status Indicated.
  • Photocell for film length registered and automatic adjustment in 3 bags.
  • Simple and fast bag size changeover with the one-piece forming set.
  • Work with most of laminated heat seal films.
  • All product contact parts in #304 stainless steel or food-grade plastic.
  • Sealing Jaws cover protector.
  • Stainless Steel Frame
Piston Filler—Liquid
Volumetic Cup—Powers
Line Scale Weigher—Granules
Comination Scale Weigher—Granules
Auger Filler—Powers
Additional Info
Bag Styles:
Pillow Bag, 3-side Sealing
Bag Width:
40 to 150mm (2.0 to 7.9″)
Bag Length:
50 to 200mm (1.6 to 5.9″)
Product Characteristic:
Granules, Powders, Liquids, Pastes
Dosing System Compatible:
Volumetric Cup, Piston Filler, Linear Scale, Multi-Head Scale, Auger Filler
Running Motion:
Working Efficiency:
40-100 bags / min
Control By:
PLC with Touch Screen
Date Coding Can Be:
Hot Stamping Coder, Thermal Transfer Coder, Label Applicator
Options Available:
Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing, Coffee Valve, Air Expeller
Power & Voltage:
2.0 KW
Compress Air:
0.65 MPa 0.25 M3/min
1200*700*1520mm (48*27.6*59.8″)
Machine Weight:
400 KGS
