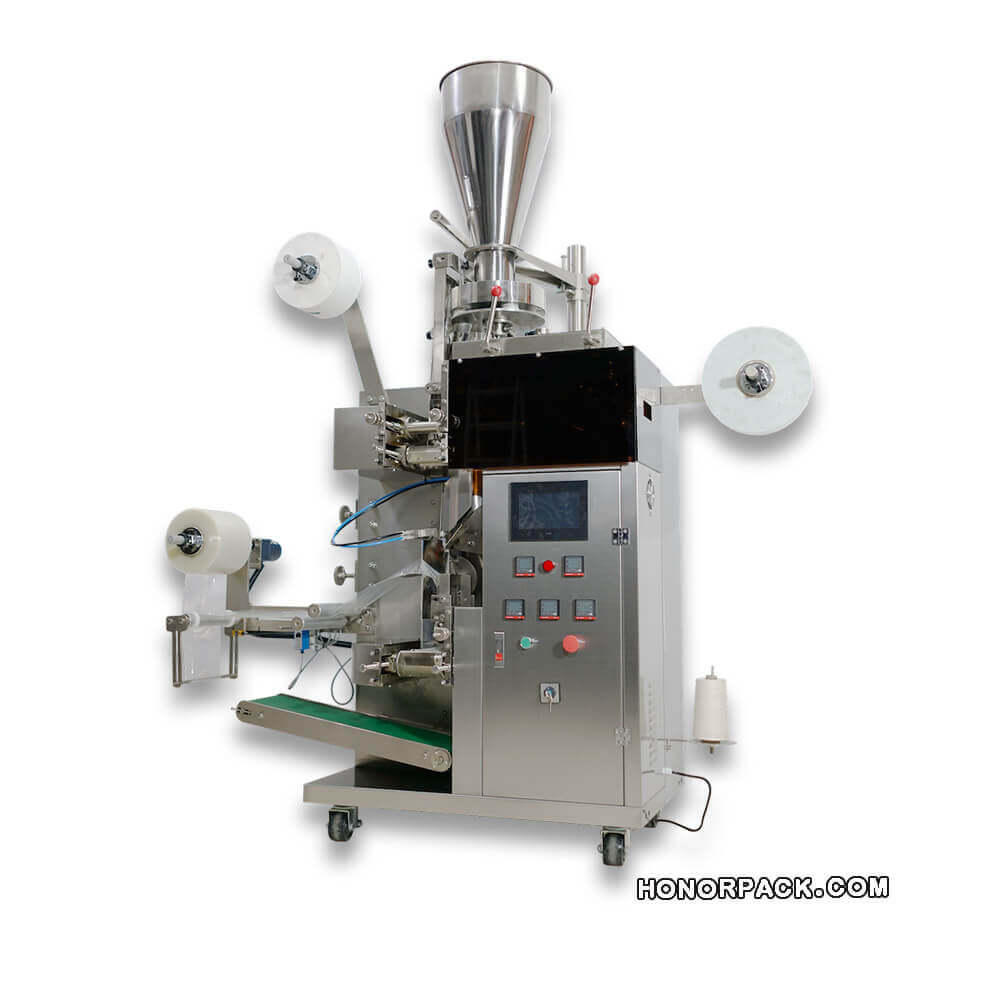

TBY-169 Automatic Double Tea Bag Packing Machine

The full automatic tea filling and sealing machine is suitable for the dual bag packing of small grain-like materials, such as tea leaves, medicinal tea, and healthy teas. The outside composite multi-layers film, inside filter paper bag with cotton thread and tag.

Max. speed

35 bpm

Bag Length

Max.

120mm
Category: Tag:

Description

Principal Features:
    • The outer paper bag sealing is controlled by step motor, the bag length is stable and the position is accurate.
    • Using PID temperature adjust controller, tempetature control is more accurate.
    • PLC is used to control the movement of the whole machine, and the interactive interface displayer, easy to operate.
    • All material contact parts are made of SUS304 stainless steel to ensure product hygiene and reliability.
    • Part of the working cylinder adopts original imported parts to ensure the accuracy and stability of the machine.
    • Additional devices can complete functions such as flat cutting, date printing, and easy tearing.

Additional Info
Bag Styles:
Pillow Bag, Three Sides Sealing
Pouch Size
Inner bag size：Length 50-75㎜；Width 50-75㎜Outter bag size：Length 85-120㎜；Width 75-95㎜
Filling Range:
1-15g
Capacity:
25-35 bags per min
Powder & Voltage:
220V/50Hz Single Phase 3.7KW
Machine Weight:
650KG
Machine Dimension （L×W×H）:
1050×700×1800mm
