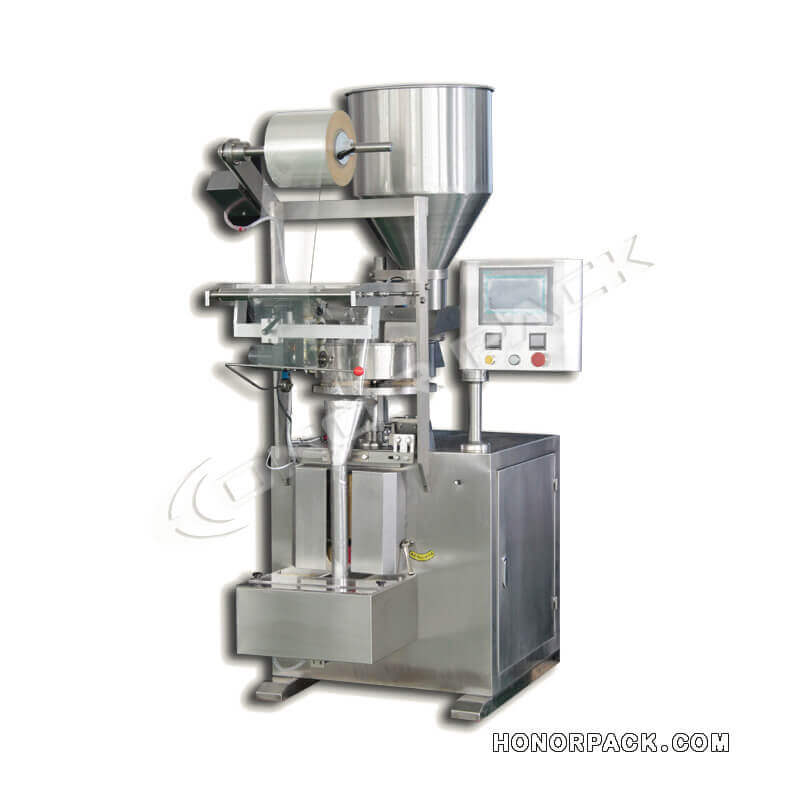

Stainless Stee Pillow Bag Granule Packing Machine VFH5/6-G420

  • Make Pillow Bag.
  • Volumetric Cup Integrated
  • Stainless Steel Frame

Max. speed

60 bpm

Film Width

Max.

420mm(20.5″)

Category: Tag:

Description

Basic Information:
    • PLC & 7 inch touch screen contro. Working Status Indicated.
    • Photocell for film length registered and automatic adjustment in 3 bags.
    • Simple and fast bag size changeover with the one-piece forming set.
    • Work with most of laminated heat seal films.
    • All product contact parts in #304 stainless steel or food-grade plastic.
    • Sealing Jaws cover protector.
MIN.
  • Stainless Steel Frame

Additional Info
Bag Styles:
Pillow Bag
Bag Width:
80 to 190mm (3.2 to 7.5″)
Bag Length:
50 to 280mm (2.0 to 11″)
Product Characteristic:
Granules
Dosing System Compatible:
Volumetric Cup Integrated
Running Motion:
Intermittent
Working Efficiency:
20-60 Bags/Min
Control By:
PLC with Touch Screen
Date Coding Can Be:
Hot Stamping Coder
Options Available:
Perforation, SS Frame, Nitrogen Flushing, Air Expeller
Film & Reel:
0.04-0.12mm (30-120mic.) Real Max.Dia.400mm (15.8″) Max. Reel Width 270mm (10.6″)
Power & Voltage:
2.0KW
Compress Air:
No Request
Dimensions:
955*690*1780mm（37.6*27.2*70）
Machine Weight:
400 KGS
